Products
Precision machined components and assemblies produced from castings, forgings, bar stock and fabrications.
Starting material
Castings, forgings, bar stock and fabrications.
Operations
Turning, milling, drilling and tapping, grinding, broaching, honing and assembly.
Volumes
From low-volume service parts to high-volume production programs.
Parts we’ve made
A sample of components machined at our Shelby Township plant. Select a photo to enlarge it.
Four-hole spacer for an automotive transmission application
Link assembly with bushed eyes and threaded studs, zinc plated

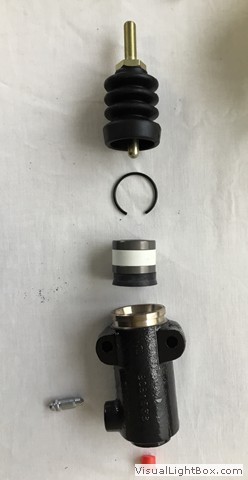

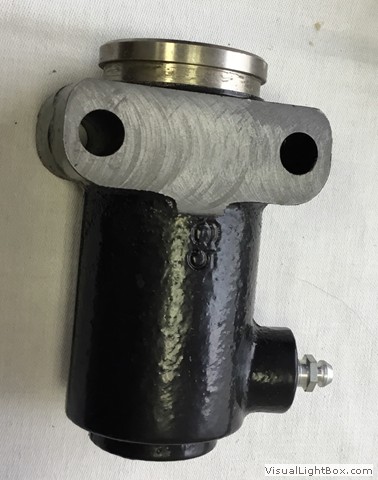

Hydraulic slave cylinder: machined casting with milled mounting pad, assembled

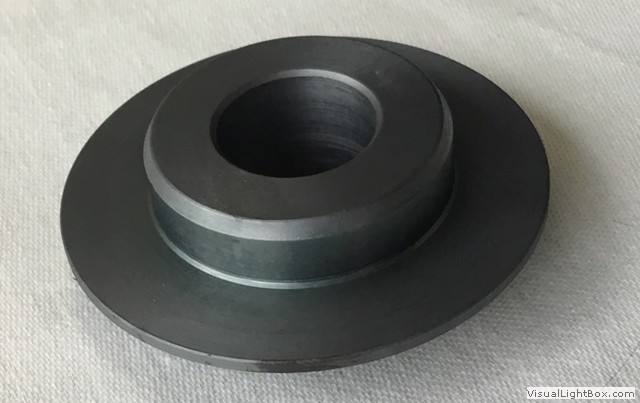

Flanged spacer, turned and FNC treated
Slotted lock ring with external tabs
Oil tube with end hole, precision ground

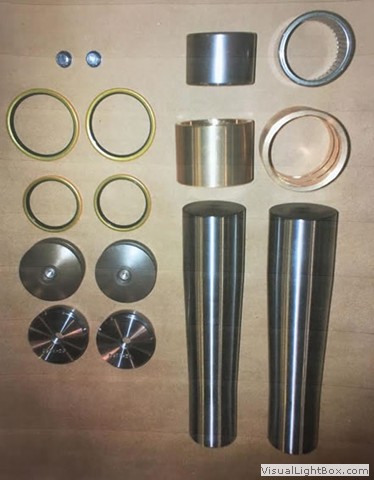

Heavy truck king pin and components kit
Bronze bushings, turned and bored
Turned end cap with tapped center hole
Precision ground pin
Bushing for shackle bolt, with rubber seals assembled on both ends
Ground pin with cross holes and tapped end
Pin with retaining grooves and cross hole

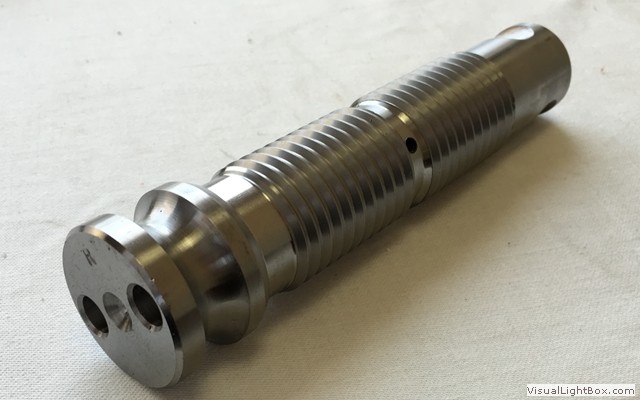

Shackle bolt with broached slots, turned threads, tapped hole for grease fitting and cross hole
Alloy steel clamp plate, 3.2 in. O.D. x 0.500 in. thick with 0.900 in. bore, heat treated complete
Three-lobe mounting flange with tapped center boss

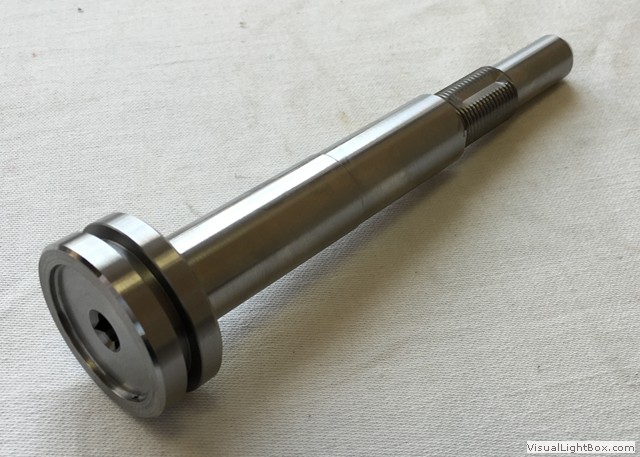

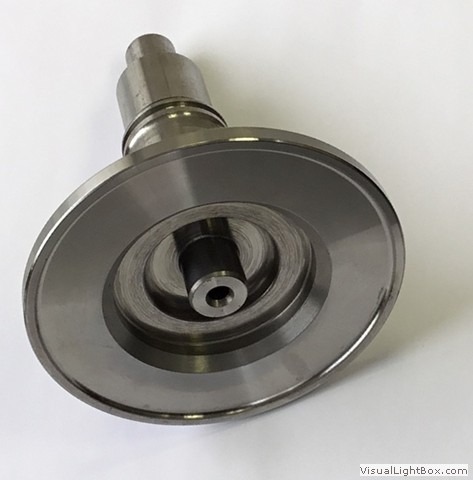

Stepped shaft with flanged head
Alloy steel clamp plate with three counterbored holes
Ground pin with cross hole, grease groove and tapped end
Clutch shaft with external spline and slotted end
Stepped input shaft machined from a forging
Input shaft with external spline

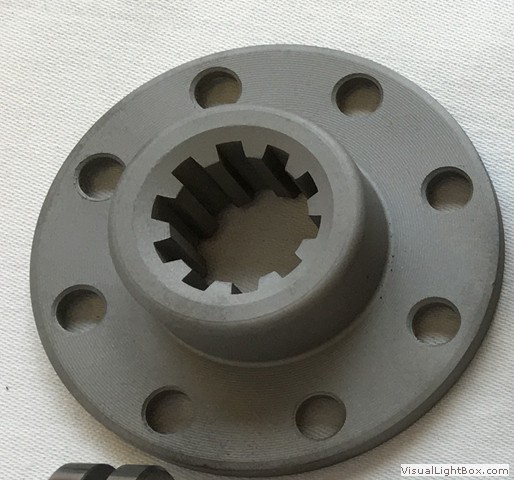

Driver flange with internal spline and bolt circle
Stepped intermediate shaft with slotted end
Long precision-turned output shaft
Ring gear blank with tapped 12-hole bolt circle
Splined stub shaft
Ductile iron housing with machined mounting flange

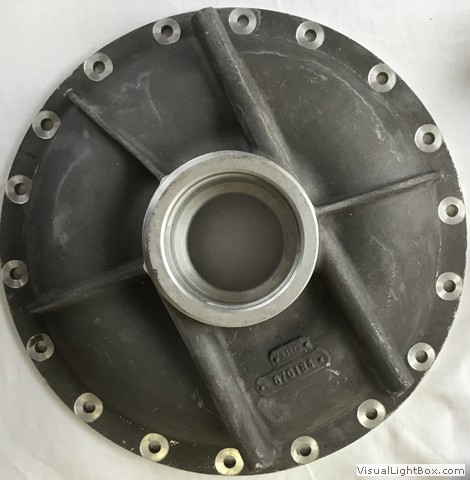

Cast cover with machined bore and bolt circle

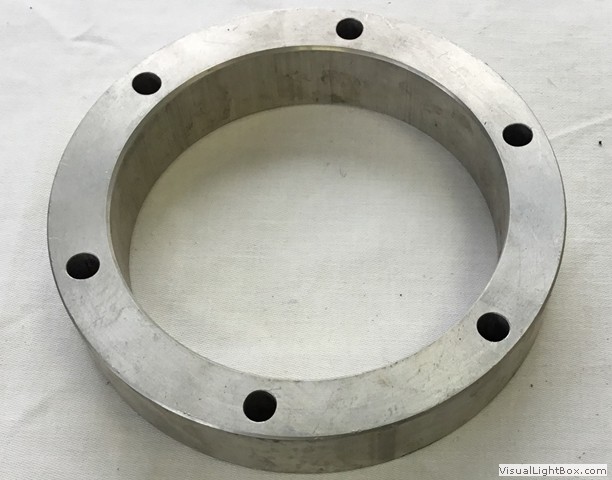

Bored and faced steel ring with bolt holes
Splined flange with bolt circle
Forged stud with turned grooves and thread
Threaded stud with turned shoulder

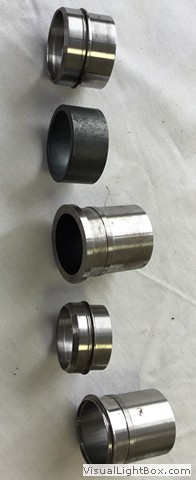

Turned bushings and sleeves

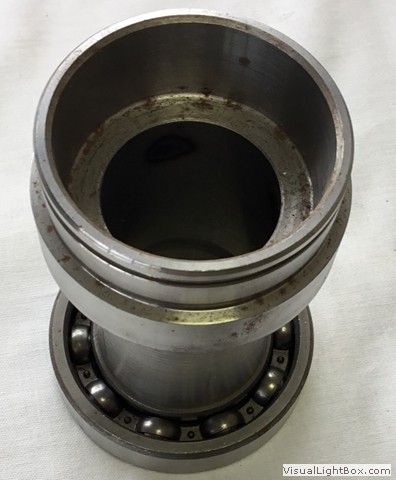

Bearing housing with pressed-in bearing

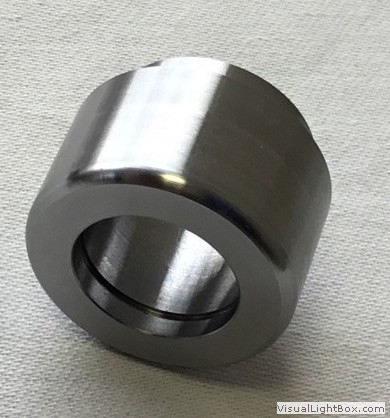

Turned and bored sleeve
Stepped pin turned on a lathe

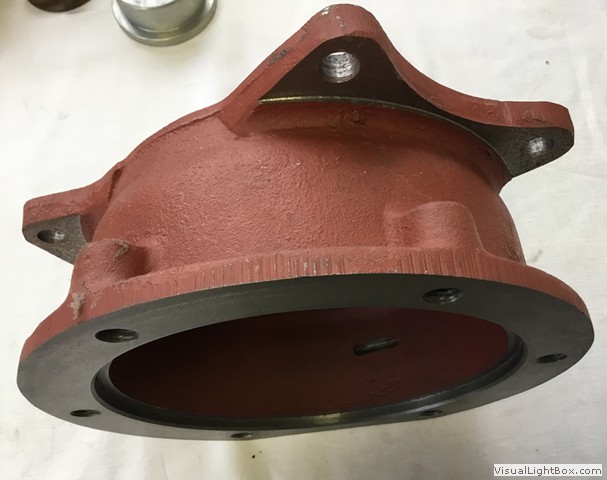

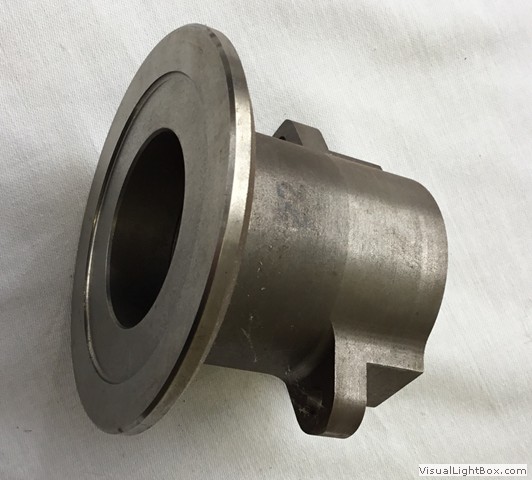

Flanged housing with machined bore

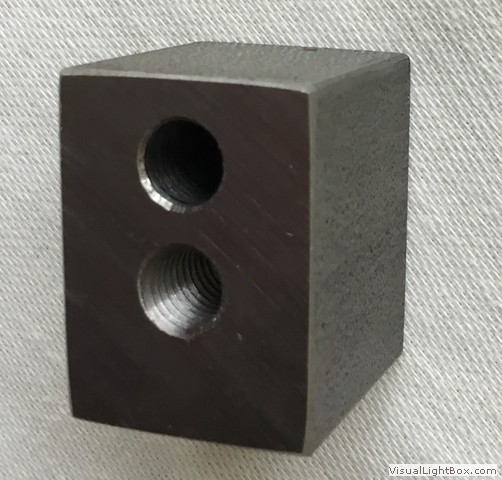

Drilled and tapped steel block

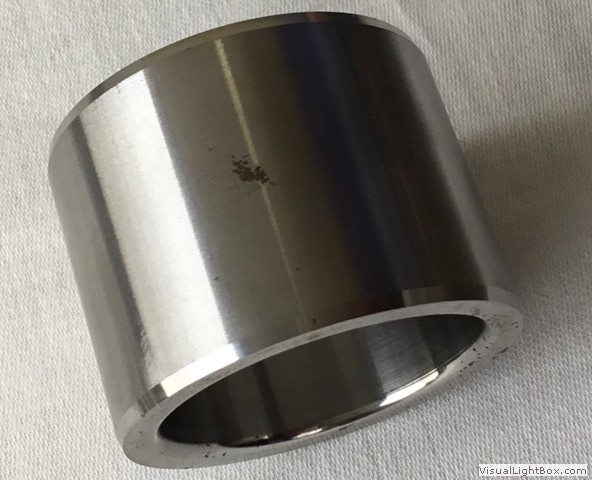

Precision bored sleeve
Stepped shaft
Casting with machined stepped bore

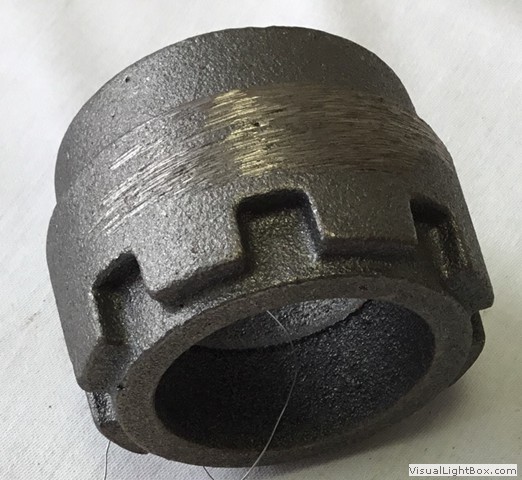

Cast collar with castellated end, machined

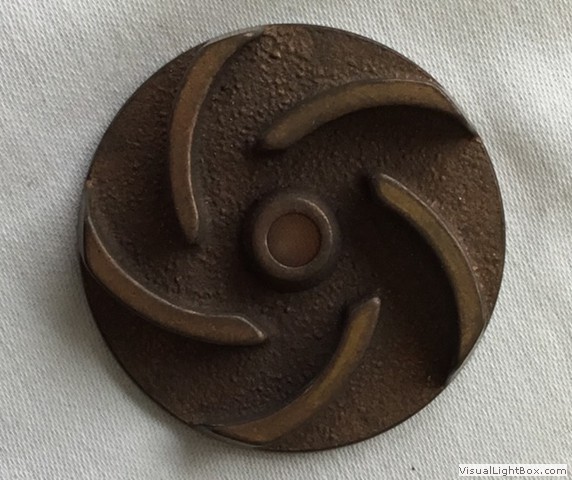

Impeller casting with machined hub

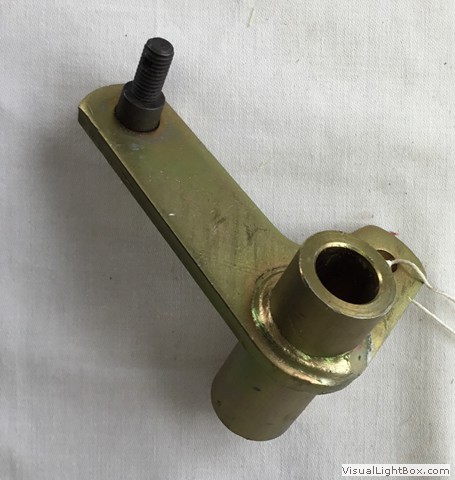

Lever arm with machined bore and stud

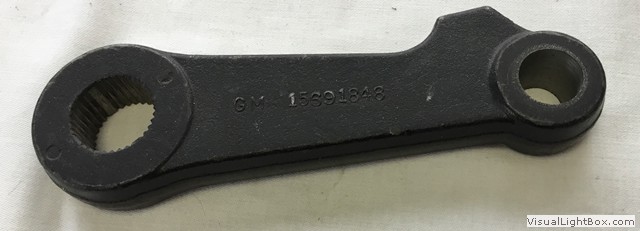

Forged lever with internal spline

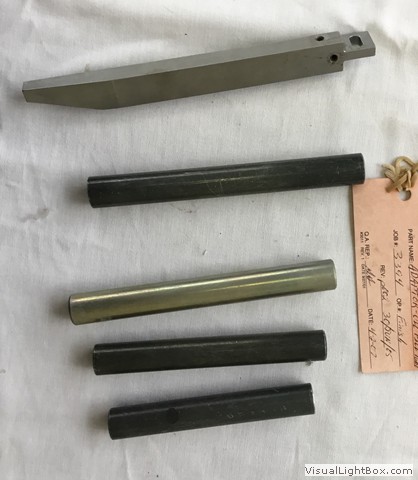

Hardened pins and shaft blanks
Threaded eye bolts
Welded mounting plate with machined boss

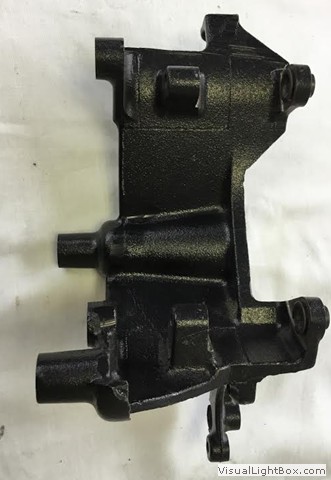

Machined bracket casting

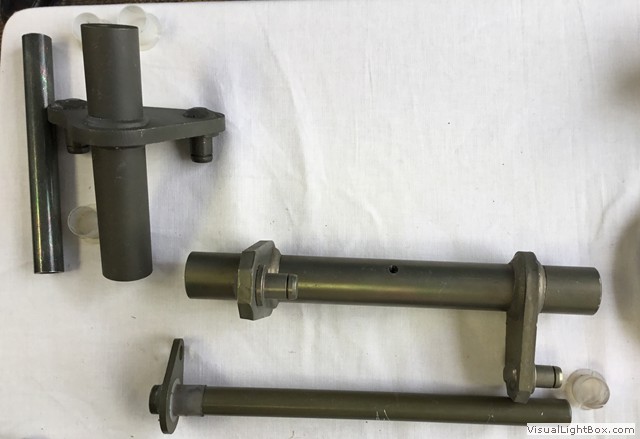

Shaft assemblies with welded arms
Flanged hub, turned and bored
Threaded housing
Flanged ring with bolt pattern

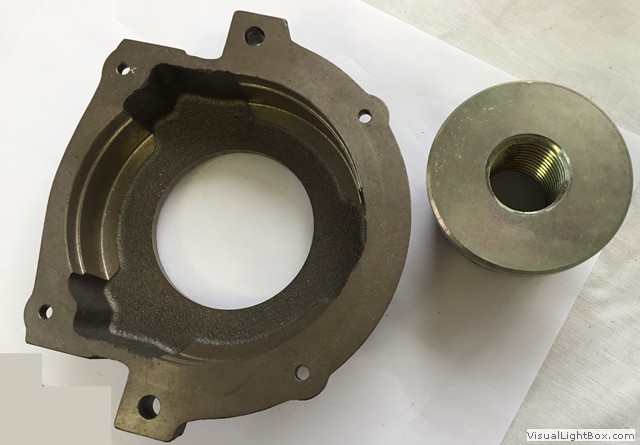

Machined housing with threaded bushing

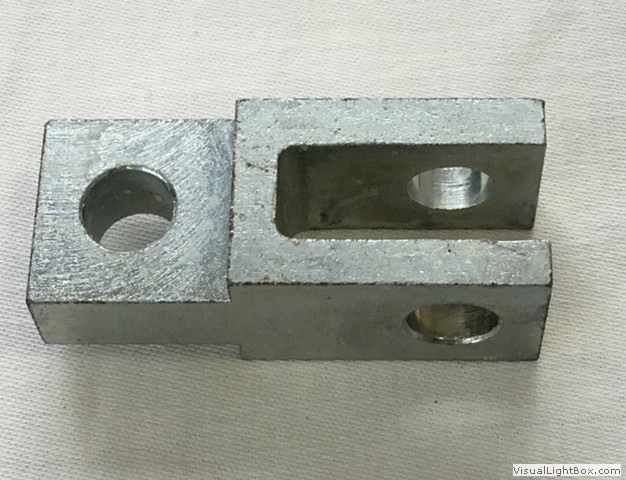

Machined clevis block, zinc plated

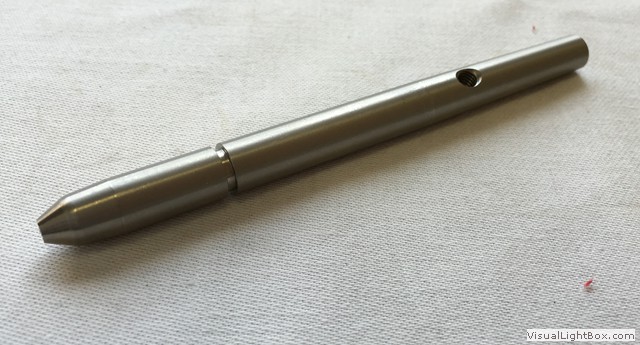

Stainless steel pin, precision turned with pointed end and cross hole
Have a print you’d like quoted?
Send us your drawing, annual volume and material. Our team will review it and get back to you.
